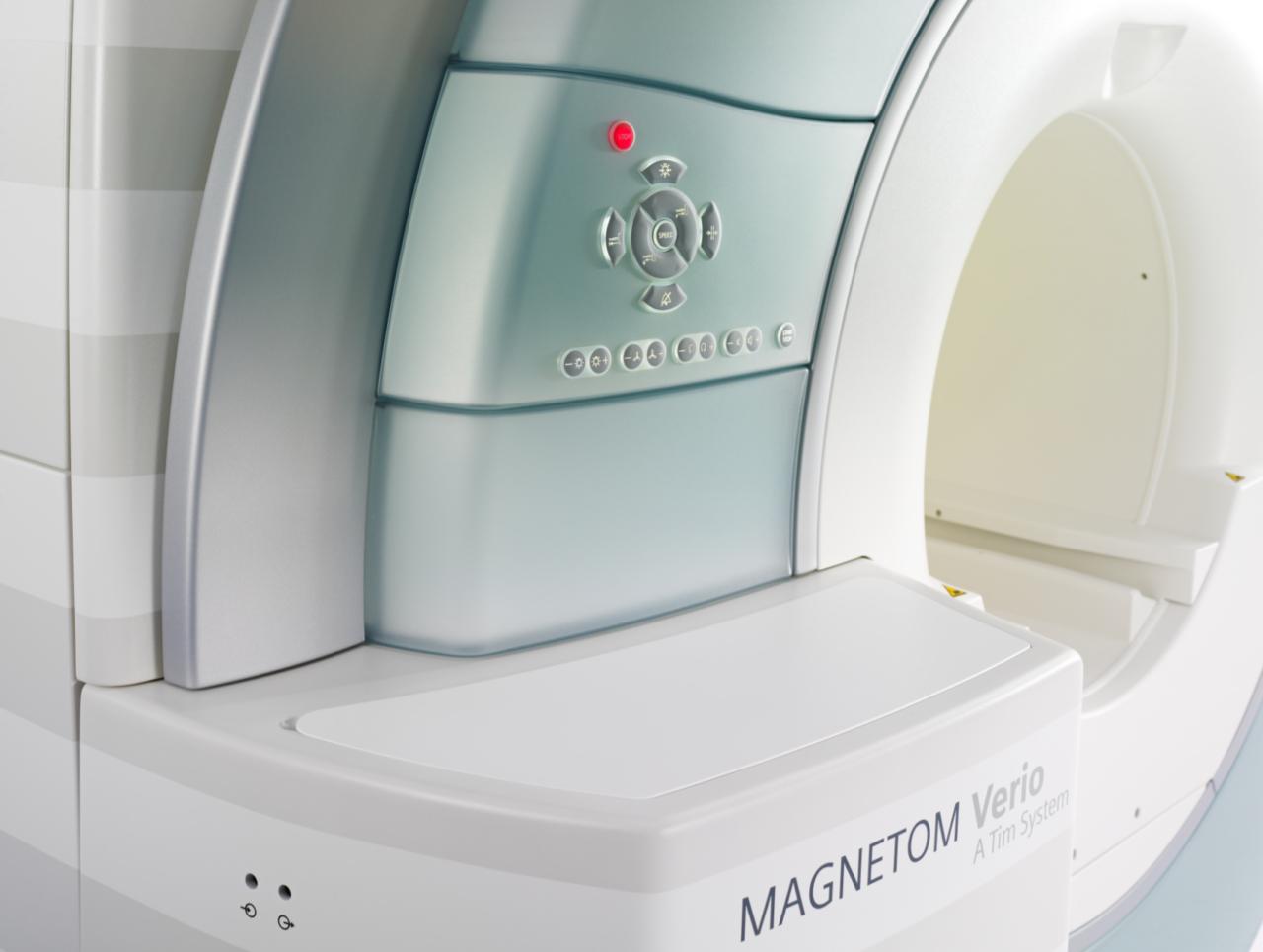

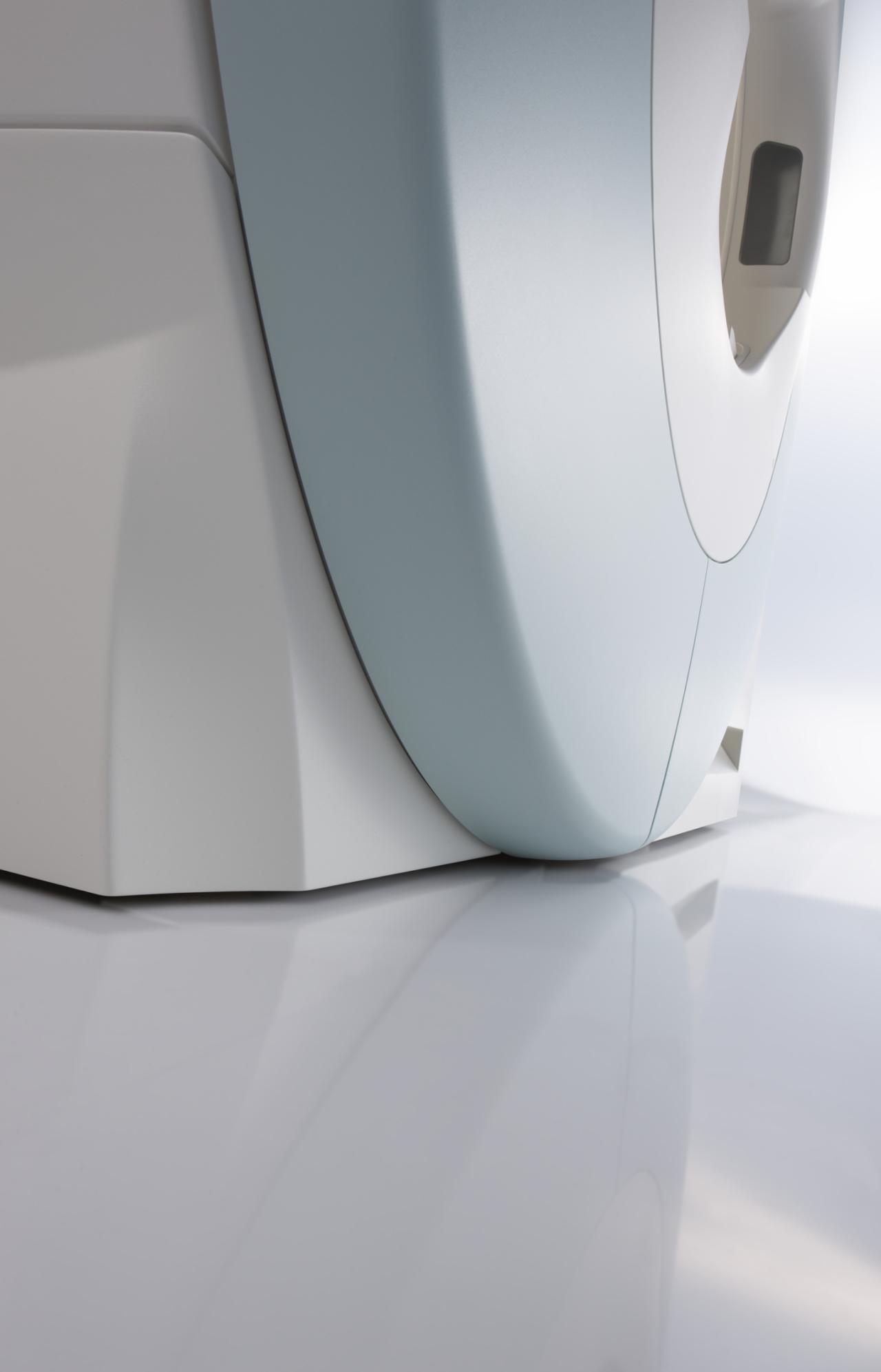

    Magnetom Verio 3T

    Complete cover solution of an MRI scanner

    Style: “Colour tone – neutral”

    Project scope

    Complete system development and system delivery of the whole cover assembly.

    Requirements

    • Fire class rating in accordance with UL 94 V-0
    • High impact resistance
    • Glass-like green-translucent design effect
    • Remaining cover with two-coloured stripe design

    Highlights of the project

    • First complete system development of the whole cover assembly for an MRI scanner incl. complete substructure and connection to specified device interfaces (more than 600 single components).
    • Development of a translucent ABS material for the glass-like front cover together with our partner network.
    • Integration of the patient ventilation directly into the cover part using the Twin-Sheet procedure.


    Range of services

    Construction and development of all cover components and all connection and substructure components.

    Production of components using Twin-Sheet forming and thermoforming incl. multi-coloured painting.

    Sourcing and complete assembly of additional cover components made of GFK / RTM and all other components (electronics, metal parts, cables etc.).

    Just-in-time delivery directly to the customer’s assembly line with specially developed shuttle transport.



    All products and parts in our showroom represent a small part of our implemented projects. We will be pleased to check your projects for feasibility and economic efficiency free of charge at any time, or we can provide you with recommendations for suitable technologies.
