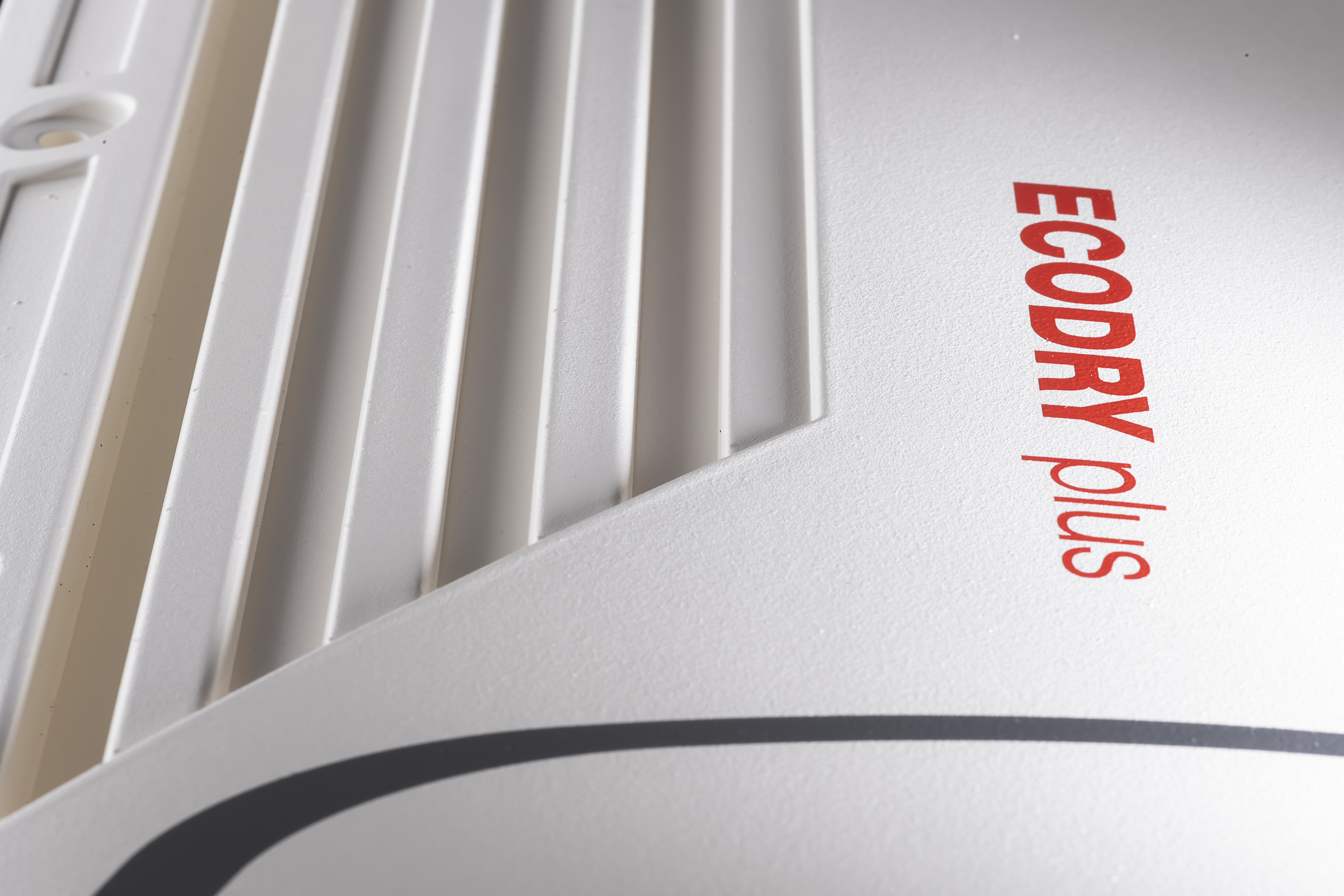

    Ecodry plus

    Housing of a vacuum pump

    Project scope

    Production and printing of a housing for a laboratory vacuum pump

    Requirements

    • Continuous temperature resistance up to 90 degrees Celsius
    • Precise mapping of the desired design
    • No painting

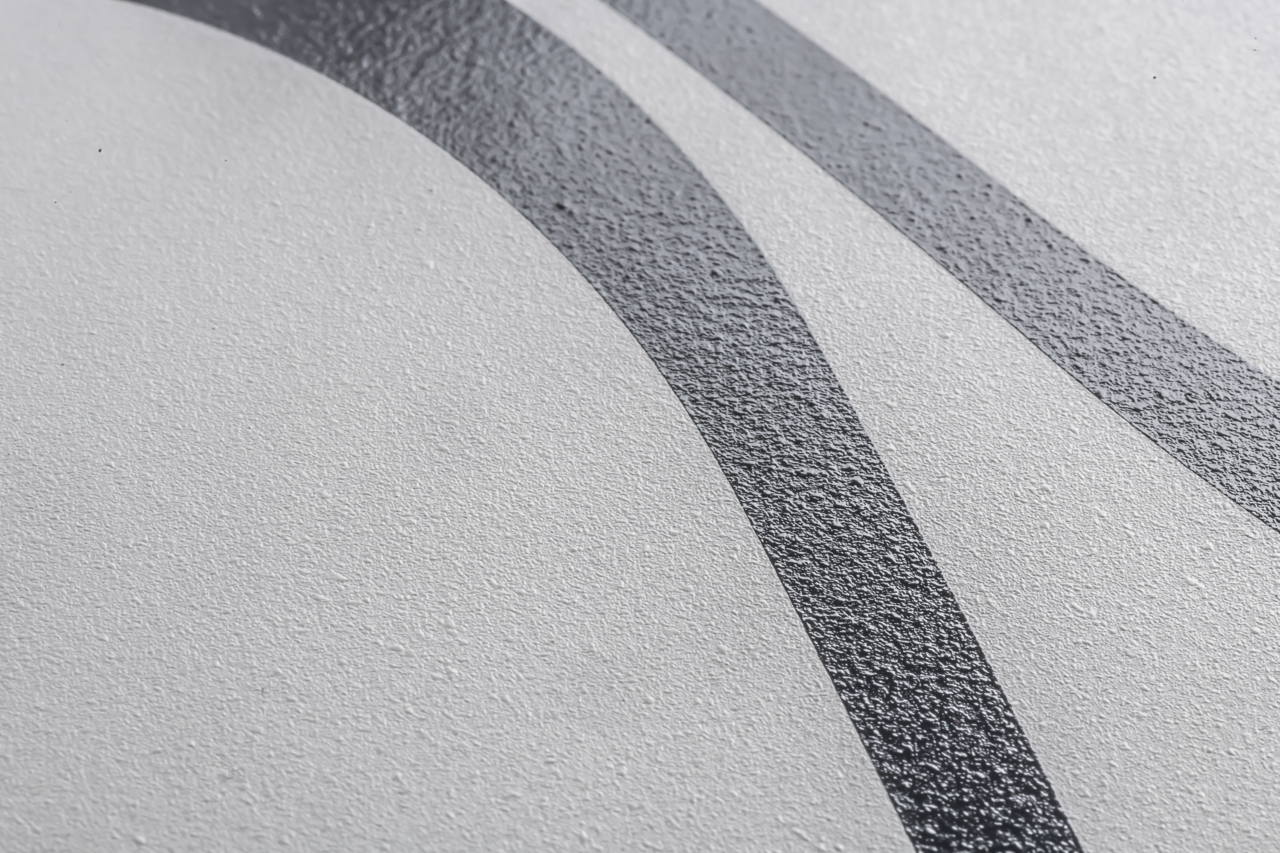

    • Multi-colour screen print
    • Noise insulation

    Highlight of the project

    The component could not be produced with the specified design and other technical requirements as thermoformed component in one piece. For this reason, Hombach produces the component from 5 flat elements from one tool, which are joined together invisibly.


    Range of services

    Hombach constructed the components in close cooperation with the customer

    The individual components are negatively thermoformed and joined together after CNC machining. This is followed by multi-coloured screen printing of the parts, and insulating foam is glued into a sight glass.



    All products and parts in our showroom represent a small part of our implemented projects. We will be pleased to check your projects for feasibility and economic efficiency free of charge at any time, or we can provide you with recommendations for suitable technologies.
